DEEPSOUND B3 Product Manual

Hardware Version: v1.0.2
Manual Version: v1.0
Release Date: 2026-04-29
Last Updated: 2026-04-29
Author: SEONGSANLAB Co., Ltd.

PART I: Safety and Maintenance

1.1 Safety Information

This device consists of precision electronic components and high-voltage pulser circuits. Please read the following safety instructions carefully before use.
Using an external power supply that does not meet the specifications may result in system circuit damage or fire hazard.
The B3 model features an ultra-lightweight design for portability, but precision internal components may be damaged by strong impact or dropping.
There are no user-serviceable parts inside the device. Unauthorized disassembly will void the free repair service.
Maintain a dry environment when using the device; using it in high humidity or splashing water poses a risk of short circuits and electric shock.

1.2 Maintenance of the Device

Operating Temperature: Recommended range is 0°C to 60°C. Avoid extreme temperature conditions.
Storage Temperature: Store in an environment between -20°C and 80°C. A cool place away from direct sunlight is recommended.
If the device is not used for more than one month, remove the battery and store it at a state of charge around 50%.
Use the dedicated carrying case to protect the device from external impacts during transportation.

1.3 Cleaning Guide

Screen Cleaning: Use a soft, lint-free dry cloth to clean the 7-inch capacitive touchscreen. For severe contamination, use a small amount of alcohol-based dedicated cleaner.
Port Management: Exercise extreme caution to prevent liquids or foreign objects from entering the probe connection ports such as MiniDLP IPEX.
Dust Removal: Regularly remove dust around external input/output ports using a non-contact air spray.

PART II: Product Overview

2.1 Introduction to DEEPSOUND B3

DEEPSOUND B3 is an ultra-lightweight Phased Array Ultrasonic Testing (PAUT) device designed for extreme field mobility and portability.
Weighing less than 1kg (approx. 1.4kg with battery), it is optimized for rope access inspections or precision inspections in confined spaces.

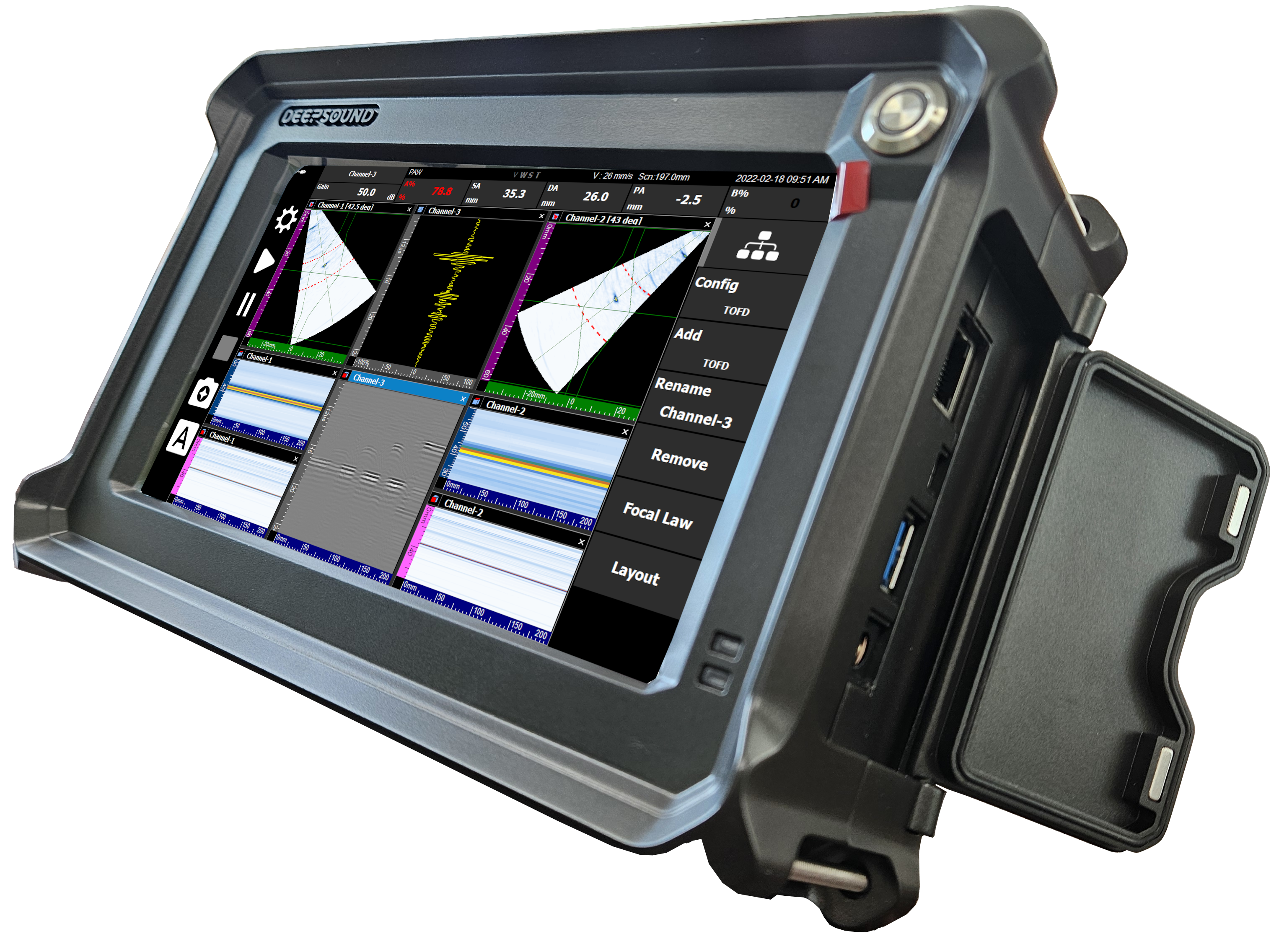

DEEPSOUND B3 Product Overview

2.2 Hardware Characteristics

Display: Equipped with a 7-inch high-resolution (1024x600) capacitive touchscreen, providing excellent visibility and fast operational response in outdoor fields.
Channel Configuration: Supports 16:64PR channel configuration, performing precise ultrasonic beamforming functions despite its compact size.
Data Processing Speed: Supports a digitization rate of 100 MHz, enabling precise data acquisition without signal distortion.
Ultra-lightweight Design: Maintains a light weight of 1.4kg including the battery to minimize operator fatigue.
System Stability: Features a high-speed booting system for immediate inspection readiness in the field.

2.3 Accessories and Packages

The standard package of DEEPSOUND B3 includes the following essential components:
B3 Main Unit: Ultra-compact main device with PAUT/UT inspection functions.
Dedicated Battery Pack: High-capacity lithium-ion battery.
Power Adapter and Cable: For device power supply and battery charging.
Calibration Certificate: Official document containing device performance verification data.
Dedicated Hard Case: Portable case with built-in shock-absorbing foam.

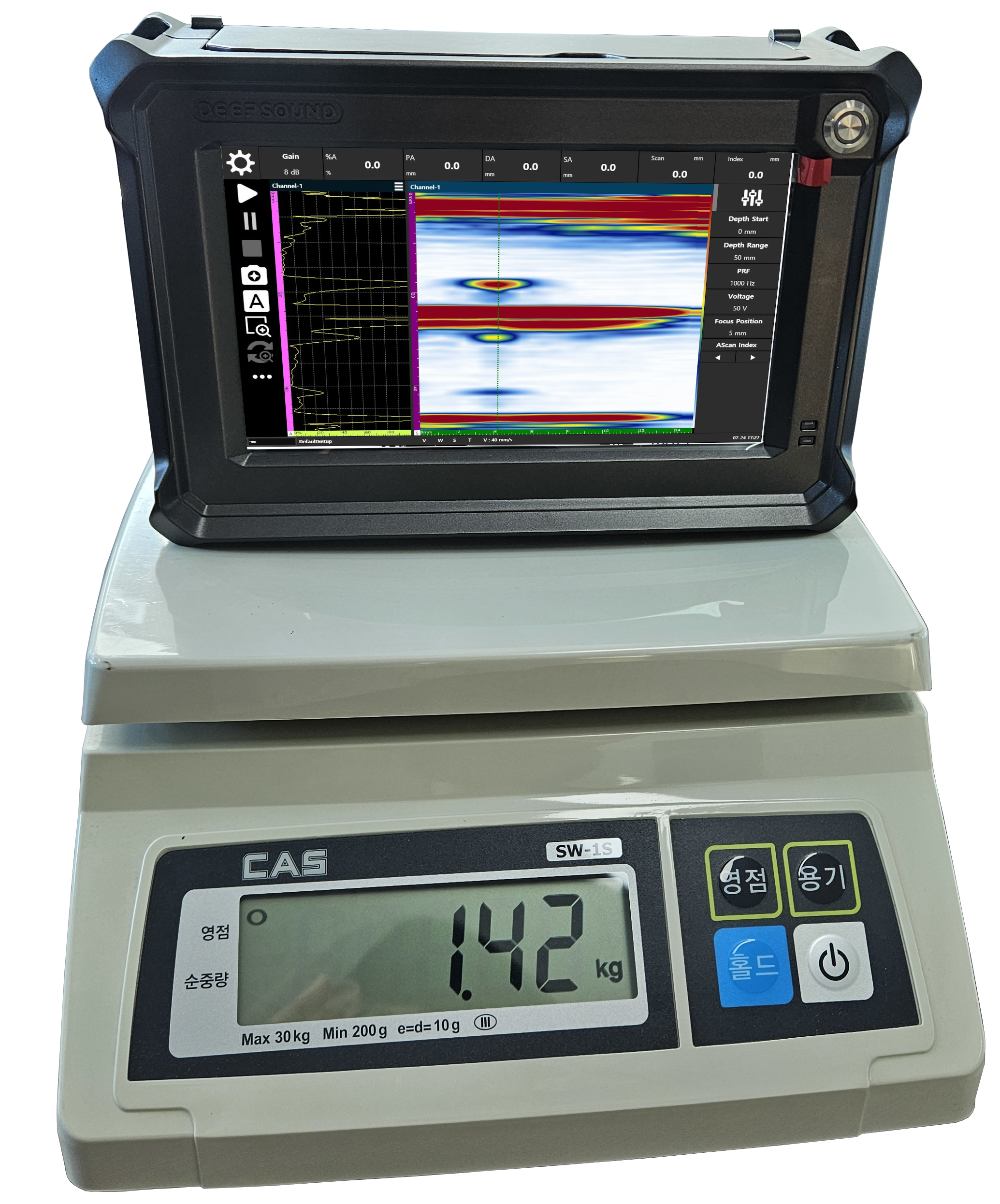

DEEPSOUND B3 Main Unit Weight

PART III: Hardware Interface

3.1 Device Layout and Parts

Considering the characteristics of portable equipment, DEEPSOUND B3 efficiently places all operation buttons and ports in positions that allow for one-handed operation.

3.1.1 Front View

Display: The 7-inch capacitive touchscreen occupies the front, and all operations are performed through intuitive software icons.
Power Button: Controls system power via physical buttons located at the top or side.

3.1.2 Side Interface (Connector Panel)

Opening the protective cover on the side of the device reveals the following input/output ports:
Probe Port (IPEX 160p): High-density IPEX probe connector (Minidock 160p type).
UT Port (Lemo 00 x 2): Lemo 00 connectors for conventional ultrasonic and TOFD inspection.
Ethernet (RJ45): Port for PC communication and network data transfer.
USB 3.0: Port for data backup and peripheral connection.
HDMI Port: Port for external monitor output.
Encoder Port: Encoder input port for scanner connection.
DC Input: Dedicated power adapter connection port.

3.1.3 Rear View

Battery Compartment: Slot where the high-capacity battery pack is installed.
Built-in Stand (Kickstand): Can be deployed using the foldable stand.

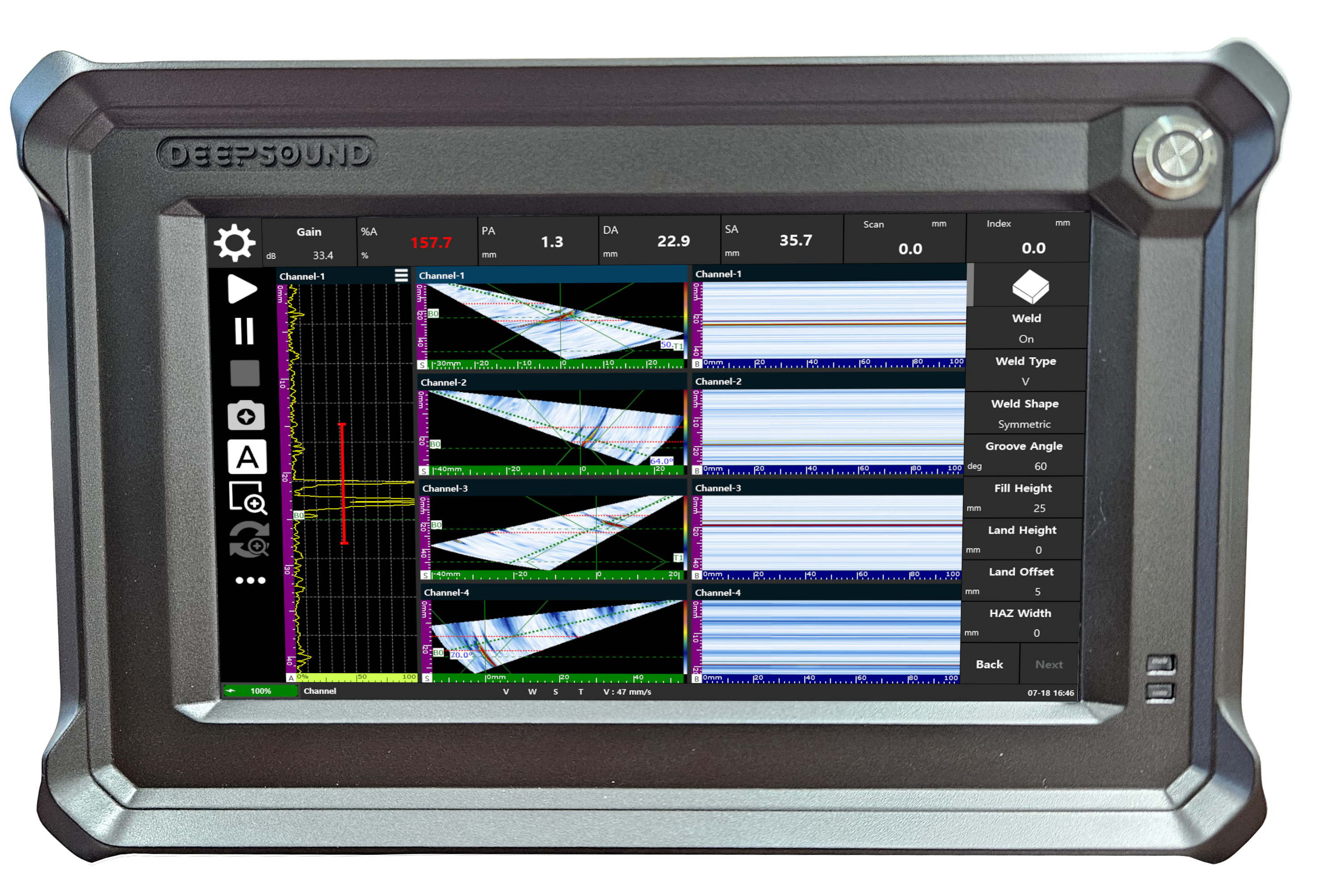

DEEPSOUND B3 Front View

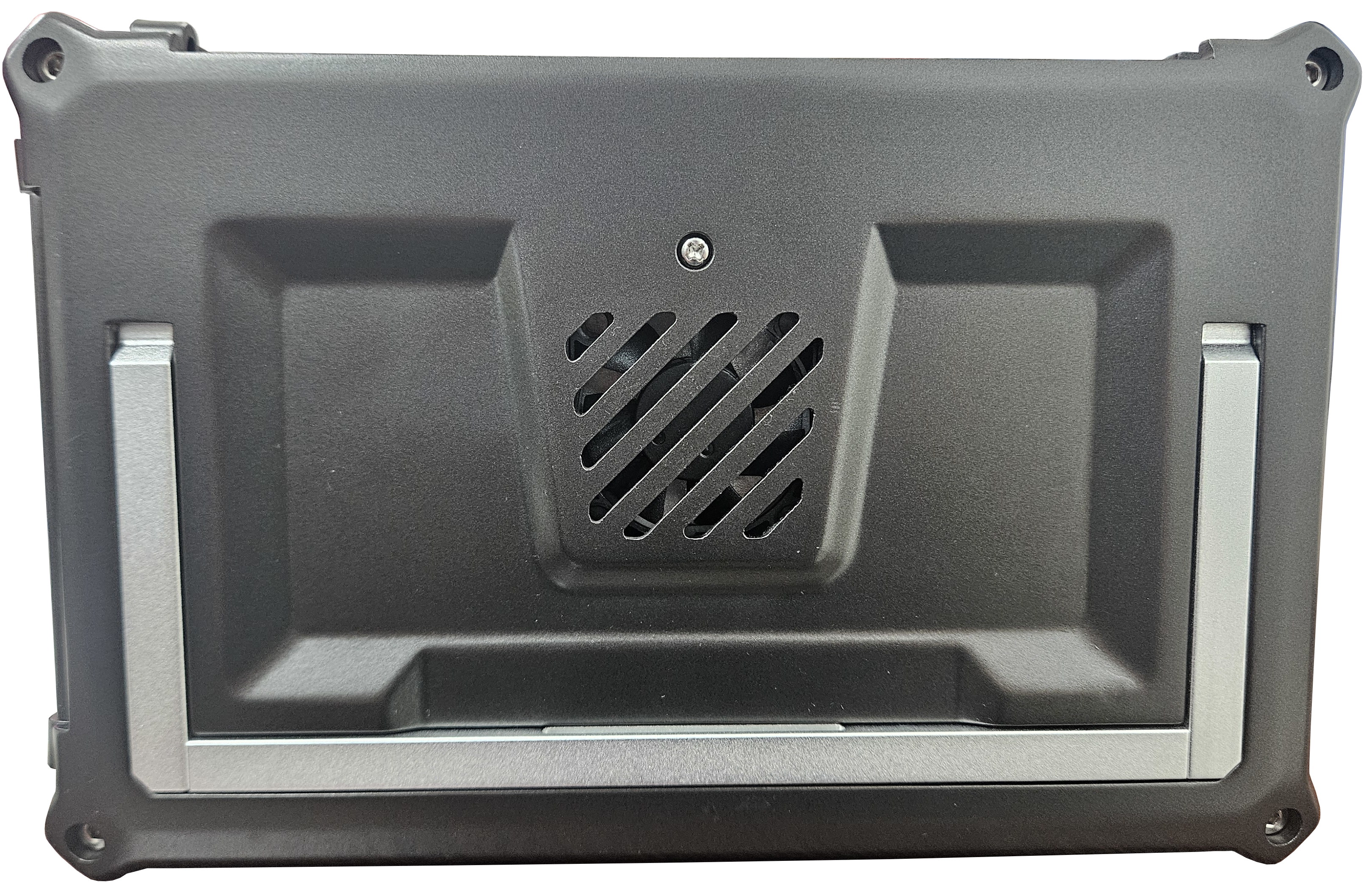

DEEPSOUND B3 Rear View

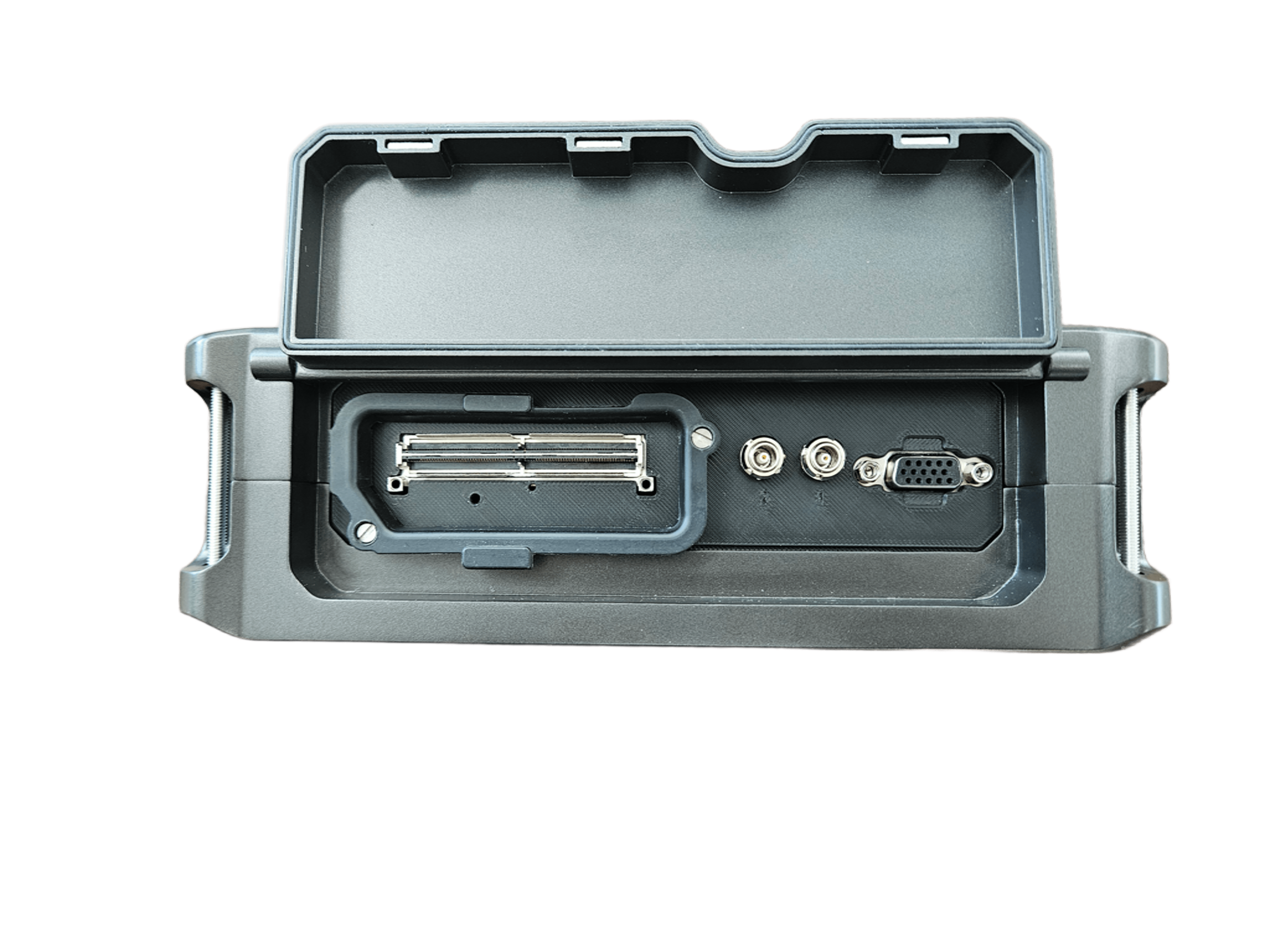

DEEPSOUND B3 Top Interface (PA/UT Port)

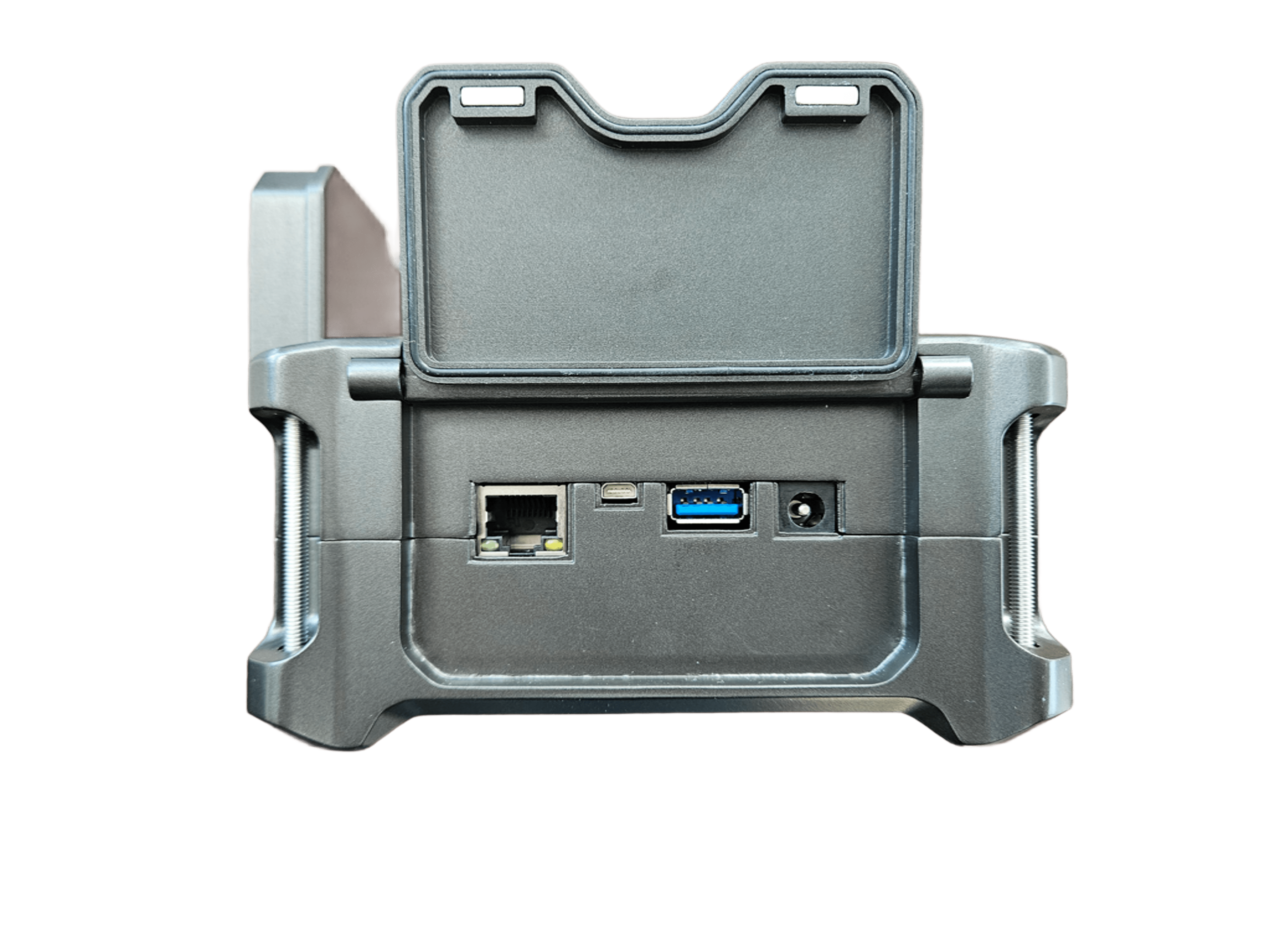

DEEPSOUND B3 Side Interface (I/O Port)

PART IV: Preparation for Use

4.1 Batteries and Power Management

Battery Specification: Uses a 7.2 V / 9900 mAh high-capacity lithium-ion battery pack.
Operation Time: Up to approximately 4 hours of field inspection is possible when fully charged.

4.2 Installing and Charging the Battery

Battery Installation: Open the battery cover on the rear of the device, insert the battery pack securely according to the electrode direction, and then secure the cover.
Battery Charging: Connect the dedicated adapter to the side DC power input port to charge.

4.3 Turning ON/OFF the Device

Turning ON: Press and hold the power button for approximately 2-3 seconds.
Turning OFF: Use the shutdown function within the software menu or short-press the power button to display the shutdown confirmation window.

PART V: External Connections

5.1 Probe Connections

5.1.1 Phased Array Probe (IPEX 160p)

Connection Method: Gently insert the Minidock IPEX connector according to the port direction.

5.1.2 Conventional UT Probe (Lemo 00)

Connect the Lemo 00 cable to the UT port.

5.2 Encoder Connector

Function: Collects 2-axis encoder information and synchronizes precise inspection position information with data.

PART VI: Device Specifications

6.1 General Specifications

Dimensions (WxHxD): 215 x 140 x 72 mm (With Case)
Weight: 1.4 kg (With Battery)
Power Supply: 12 V, 5 A
Display: 7.0” Wide Monitor [ 1024 x 600 ]
Storage: 16 GB

6.2 Connectivity & Environmental

USB Port: USB 3.0 x 1
HDMI Port: Type D Micro x 1
Probe Port: Minidock 160p Connector x 1
UT Port: Lemo 00 UT Connector x 2
Encoder Port: 2-axis Encoder input
Operating Temperature: 0 ~ 60 °C
Storage Temperature Range: -20 ~ 80 °C

6.3 Technical & Acoustic Specifications

6.3.1 PA/UT Configuration

Effective Digitizing: 100 MHz
Max PRF: 30 kHz
Refresh Rate: 30 Hz
A-scan Height: 300 %

6.3.2 Phased-Array

PAUT Channel Configurations: 16:64PR
Scan Type: Linear, Sectorial, Conventional, TOFD
Focal Law: Unlimited
Channel Group: Up to 4
Focusing Mode: True-depth, Sound path

6.3.3 Data Specifications

Maximum Number of A-scan Data Points: Up to 16,384
Rectification: RF, Full wave
Filtering: Selection of Low-pass, Band-pass, High-pass
Video Filtering: Smoothing
TFM Raw Data Export: Yes (Supports basic video export besides P5-exclusive functions)

6.3.4 Acoustic Specifications

Pulser (Voltage): 25 V ~ 160 V (5 V Step)
Pulser (Pulse Shape): Bipolar Pulse
Pulser (Pulse Width): 50 nsec ~ 2,000 nsec
Receiver (Gain Range): 0 dB ~ 90 dB
Receiver (Band Width): 0.5 ~ 20 MHz
Receiver (Sample Resolution): 16 bit
Dynamic Sample Focusing: Yes

PART VII: Troubleshooting

7.1 Basic Troubleshooting

Device does not turn on: Check the battery installation status and remaining level.
Probe recognition error: Check the connection status of the IPEX connector.

7.2 Error Handling and Support

Manufacturer: SEONGSANLAB Co., Ltd.
Address: Room 1318, 13th Floor, Ace High-Tech City, 52, Gongdan-ro 140beon-gil, Gunpo-si, Gyeonggi-do, South Korea
Phone: +82-2-2039-5725
Email: admin@dspaut.com
